Industrial Controls Training System
Model IC-101/201

The Industrial Control Training system provides participants with hardware allowing for hands-on experiments in wiring and troubleshooting of control circuits. This system gives access to various control components which can be connected via direct wire, terminal blocks or banana jacks.

The included curriculum covers the following topics:​

IMG_3580
Industrial Controls Panel
IMG_0353

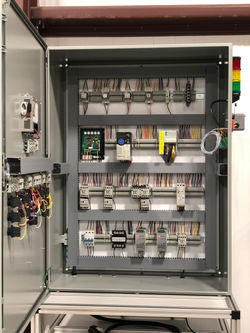

IMG_8904
IMG_8911
IMG_8901 2
IMG_8902 2
IW-202 Industrial Controls
IMG_8913
Mobile NEMA
IC-101_Mod_TT

  • Lock-out / Tag-out

  • Disconnects

  • Power Supplies

  • Pushbuttons

  • Selector Switches

  • Indicators

  • Relays

  • Non-Reversing and Reversing Starters

  • Timers

  • Limit Switches

  • Proximity Sensors

  • Photo Sensors

  • Programmable Controllers

  • AC Variable Speed Drives

  • DC Variable Speed Drives

  • Troubleshooting Controls
